ZXMP6A17E6TA
Manufacturer:
Diodes Incorporated
Mfr.Part #:
ZXMP6A17E6TA
Datasheet:
Description:

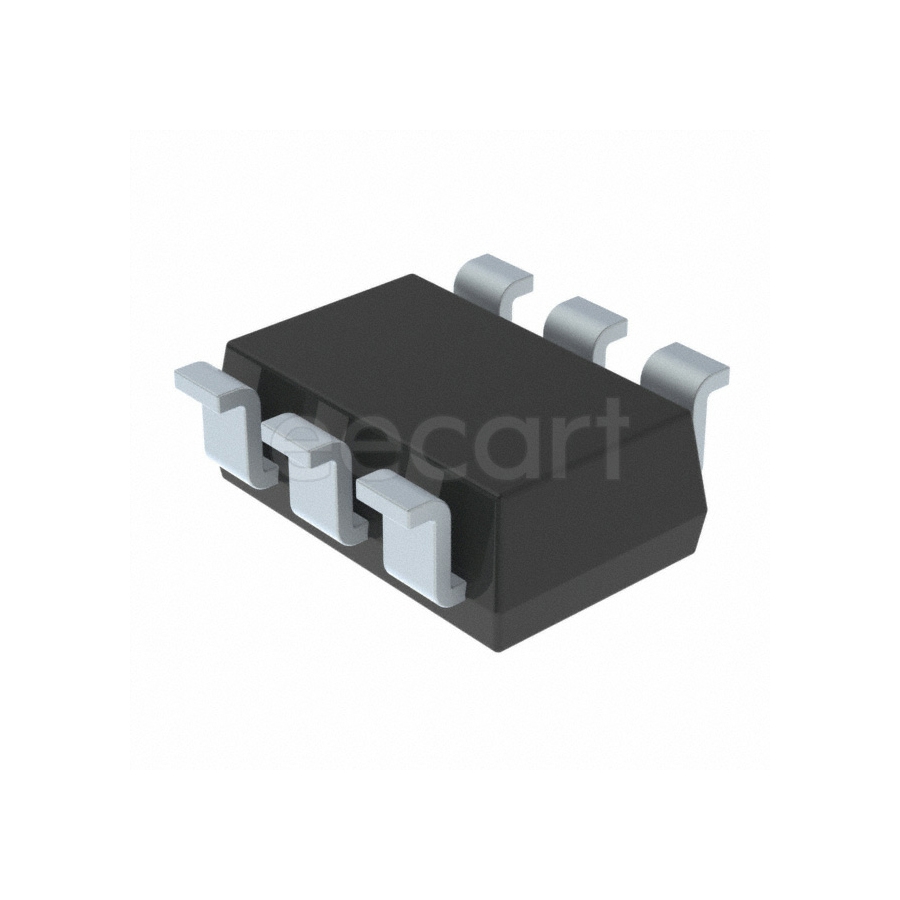

MOSFETs SOT-26 SMD/SMT P-Channel number of channels:1 1.1 W -60 V Continuous Drain Current (ID):-2.3 A 17.7 nC
| Parameter | Value |
|---|---|
| Voltage Rating (DC) | -60 V |
| Length | 3.1 mm |
| Width | 1.8 mm |
| Max Operating Temperature | 150 °C |
| Min Operating Temperature | -55 °C |
| Number of Pins | 6 |
| Resistance | 125 mΩ |
| Height | 1.3 mm |
| Packaging | Reel |
| Lead Free | Lead Free |
| Radiation Hardening | No |
| RoHS | Compliant |
| REACH SVHC | No SVHC |
| Weight | 14.996898 mg |
| Contact Plating | Tin |
| Number of Elements | 1 |
| Current Rating | -3 A |
| Max Power Dissipation | 1.1 W |
| Power Dissipation | 1.1 W |
| Threshold Voltage | -3 V |
| Number of Channels | 1 |
| Input capacitance | 637 pF |
| Continuous Drain Current (ID) | -2.3 A |
| Rds On Max | 125 mΩ |
| Drain to Source Voltage (Vdss) | -60 V |
| Turn-On Delay Time | 2.6 ns |
| Turn-Off Delay Time | 26.2 ns |
| Element Configuration | Single |
| Rise Time | 3.4 ns |
| Gate Charge | 17.7 nC |
| Drain to Source Resistance | 190 mΩ |
| Max Junction Temperature (Tj) | 150 °C |
| Gate to Source Voltage (Vgs) | 20 V |
| Drain to Source Breakdown Voltage (Vds) | -60 V |
| Schedule B | 8541290080 |
| Gate to Source Threshold Voltage | 1 V |
| FET Type(Transistor Polarity) | P-Channel |
Stock: 3164
Distributors
pcbx
pcbxUnit Price$0.28166
Ext.Price$0.28166
| Qty | Unit Price | Ext.Price |
|---|---|---|
| 1 | $0.28166 | $0.28166 |
| 10 | $0.24780 | $2.47800 |
| 50 | $0.21802 | $10.90100 |
| 100 | $0.18578 | $18.57800 |
| 500 | $0.15830 | $79.15000 |
| 1000 | $0.15127 | $151.27000 |
| 3000 | $0.14455 | $433.65000 |
| 5000 | $0.13524 | $676.20000 |
